Tire Test - Schwalbe Jumbo Jim LiteSkin

Published: |

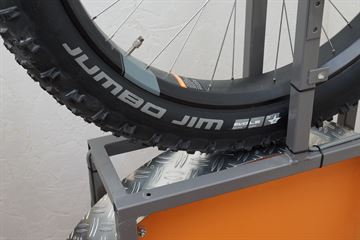

Schwalbe Jumbo Jim LiteSkin fat bike tire on a rolling resistance test machine

Because almost all Schwalbe tires perform very well in the rolling resistance tests, the Schwalbe Jumbo Jim is the fat bike tire that can't be left out of the fat bike section. I'm testing the LiteSkin version of the Jumbo Jim because I want to know how low rolling resistance of a fat bike tire can go. A TL-Easy SnakeSkin version of the Jumbo Jim is available as well which should be a bit slower because of the stronger sidewalls.


Check Schwalbe Jumbo Jim LiteSkin Prices at Amazon.com


The Jumbo Jim is built from the same materials that are also used to create the fast-rolling Schwalbe mountain bike tires. This means the Jumbo Jim uses a 127 TPI folding casing with tubeless-ready beads and the well known Schwalbe PaceStar compound. The tread pattern looks like it can handle a wide range of conditions with the relatively low, wide spaced center knobs and huge shoulder knobs that should provide plenty of cornering grip.


The fat bike section is made possible by Wolf Tooth Components

Manufacturer Specs
Brand Schwalbe
Model Jumbo Jim LiteSkin
Year 2016
Supplied By Bought in store
Sponsored by
Wolf Tooth Components
New or Used New
Mileage 0 km
Price Range High
Price Amazon.com
Part Number 11600714
TPI 127
Compound PaceStar
Bead Folding
ETRTO 100-559
Size Inch 26"
Width Inch 4.00
Specified Weight 990 grams
Max Pressure 30
Made In Indonesia
Available Sizes 26 x 4.80
26 x 4.40
26 x 4.00

Test Results


Schwalbe Jumbo Jim LiteSkin  fat bike tire on a rolling resistance test machine

Size and Weight Measurements


Size and Weight Measurements (Bike Wheel: 559-65C, Pressure: 16 psi / 1.1 bar)
Specified Weight 990 grams
Measured Weight 1079 grams
Measured Width Carcass 95 mm
Measured Width Tread 98 mm
Measured Height 84 mm
Measured Knob Height Center 3.7 mm
Measured Knob Height Edge 6.8 mm
Measured Total Thickness Sidewall 0.55 mm
Measured Total Thickness Center (excluding knobs) 1.65 mm

Specified weight of the Jumbo Jim LiteSkin is 990 grams, my sample comes in at a much higher 1079 grams. The sub-1000 grams specified weight is probably a marketing gimmick, If you can get your hands on a 990 grams Jumbo Jim, don't let it go again. The maximum width of the casing is 95 mm, the shoulder knobs stick out a bit further and measure 98 mm wide. The height of the tire is 84 mm. The volume of the Jumbo Jim is good and in line with other 26 x 4.00 rated tires.


The Jumbo Jim has some surprisingly big knobs. The center knobs have a height of 3.7 mm which is not bad. The shoulder knobs are huge on this tire and have a maximum height of 6.8 mm. The shoulder knobs on the Jumbo Jim are the biggest I've seen yet. Because this is the LiteSkin version of the Jumbo Jim, the sidewalls have a thickness of just 0.55 mm. The 0.55 mm sidewall measurement is in line with the 'regular' Schwalbe MTB tires. The SnakeSkin version will come in close to 0.85 mm.


Rolling Resistance Test Results


Rolling Resistance Test Results (Speed: 29 kmh / 18 mph, Load: 42.5 kg)
Inner Tube Schwalbe SV13J (390 gr)
Rolling Resistance 20 psi / 1.4 Bar 23.3 Watts
Rolling Resistance 16 psi / 1.1 Bar 24.7 Watts
Rolling Resistance 12 psi / 0.8 Bar 28.7 Watts
Rolling Resistance 8 psi / 0.6 Bar 36.9 Watts
Rolling Resistance Coefficient (Crr) 20 psi / 1.4 Bar 0.00698
Rolling Resistance Coefficient (Crr) 16 psi / 1.1 Bar 0.00740
Rolling Resistance Coefficient (Crr) 12 psi / 0.8 Bar 0.00860
Rolling Resistance Coefficient (Crr) 8 psi / 0.6 Bar 0.01106

In the rolling resistance test, the Jumbo Jim shows us what's possible and outperforms all other fat bike tires that have been tested up to now. At the very low air pressure of 8 psi / 0.6 bars, the Jumbo Jim stretches its legs and outperforms the next best tire by 6.5 watts. Even at the higher air pressures, the Jumbo Jim performs very strong although the gap to the competition is a bit smaller at 2.7 watts at 20 psi / 1.4 bars.


Although the Jumbo Jim performs very strong, it must be said that the LiteSkin sidewalls are much thinner and weaker than the competition, getting the Jumbo Jim to seal might be a bit harder when used in tubeless form. The SnakeSkin version of the Jumbo Jim might have matched the competition better in that regard. I do expect the SnakeSkin still has a lower rolling resistance than the competition. From experience with the normal sized Schwalbe MTB tires, I expect the Jumbo Jim SnakeSkin to come in at 39 - 40 watts at 8 psi / 0.6 bars.



Puncture Resistance Test Results


Puncture Resistance Test Result (higher is better)
Puncture Resistance Tread 6
Puncture Resistance Sidewall 5

As expected from a tire built to provide race performance, the Jumbo Jim comes in at the bottom of the list in the puncture resistance tests. Still, puncture performance isn't that bad as it comes just a few points short in both the tread and sidewall puncture tests.




Conclusion


Schwalbe Jumbo Jim LiteSkin  fat bike tire on a rolling resistance test machine

As expected from Schwalbe, the Jumbo Jim LiteSkin performs very strong in the rolling resistance test. If you're looking for a fat bike tire with race performance, the Jumbo Jim is the only tire worth considering as it will save you close to 15 watts for a pair of tires. Although the sidewalls are thin and performance in the puncture test isn't that great, it does have bigger knobs than the competition and should provide plenty of grip.


Rated 5 out of 5 because it simply is the fastest fat bike tire and that's by far the most important criteria on this site. I'm looking into testing the SnakeSkin version as well, but I'm convinced it will perform very strong as well and provide some additional sidewalls strength/sealing.


Check Schwalbe Jumbo Jim LiteSkin Prices at Amazon.com


RATING: 5 / 5
VERDICT:
Highly Recommended
