CX/Gravel Tire Test: Vittoria Terreno T50 Mixed Gravel Endurance 40

Vittoria recently launched an entirely new lineup of gravel bike tires featuring a numbered naming scheme called the T-score (Terrain Score). The Terreno T50 Mixed Gravel Endurance we have on test today sits right in the middle of the new range with a T-score of 50 points. It should be the best option when you need a tire that offers balanced pavement efficiency and off-road capabilities.

Next to the Terreno T50, Vittoria offers the T10 Hardpack, T30 Fine Loose, T60 Mixed, T70 Coarse Loose, T80 Coarse Loose, and the T90 Mud for the roughest conditions. We expect the T50 to become one of the most popular choices in Vittoria's new lineup, so it's a good starting point to see how it performs next to the latest and greatest gravel bike tires.

The Terreno T50 features a new "Endurance Casing" and it's a 100 TPI design, with an additional anti-puncture belt under the tread. The anti-puncture belt is a bit surprising, as most comparable gravel bike tires don't offer that additional protection, but it at least leaves some room for a lighter "Light" version. The Terreno T50 Endurance is E-Bike Ready and Hookless compatible, making it suitable for nearly every gravel bike.

The compound is a new "Endurance Formulation" Graphene compound that's optimized for "dependability, durability, and performance". We've now seen a lot of iterations of Vittoria's graphene compounds, and we're excited to see if this new version can hit the gravel bike sweet spot.

The new Terreno T50 is available in the 40-622, 45-622, and 50-622 sizes with black sidewalls and the 40-622 and 45-622 sizes with brown sidewalls. We've done all the tests with a black sidewall 40-622 version and compared the T50 to the latest and greatest gravel bike tires.

Manufacturer Specifications

Manufacturer Specs
Brand	Vittoria
Model	Terreno T50 Mixed Gravel Endurance
Year	2025
Supplied By	Bought in store
New or Used	New
Mileage	0 km
Price Range	High
Buy At
Manufacturer part number	11A00609
EAN	8022530032636
TPI	100
Compound	Endurance Formulation
Bead	Folding
ETRTO	40-622
Specified Weight	520 grams
Max Air Pressure (psi)	72
Made In	Pro Data
Available Sizes	40-622 (700x40c) 45-622 (700x45c) 50-622 (700x50c)

Vittoria Terreno T50 Mixed Gravel Endurance 40 Test Results

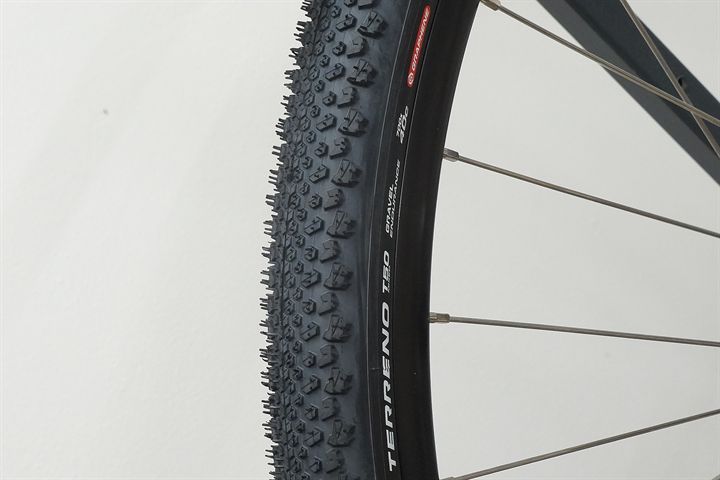

Size, Weight, and Thickness Measurements

Size, Weight, and Thickness Measurements
Specified Weight	520 grams
Measured Weight	518 grams
Measured Width Casing	38 mm (un-round)
Measured Width Tread	40 mm
Measured Height	36 mm (un-round)
Measured Knob Height Center	1.2 mm
Measured Knob Height Edge	3.0 mm
Measured Total Thickness Center (excluding knobs)	2.60 mm
Measured Total Thickness Sidewall	Pro Data
All size measurements are taken at low air pressure on a 17.8 mm inner width rim.

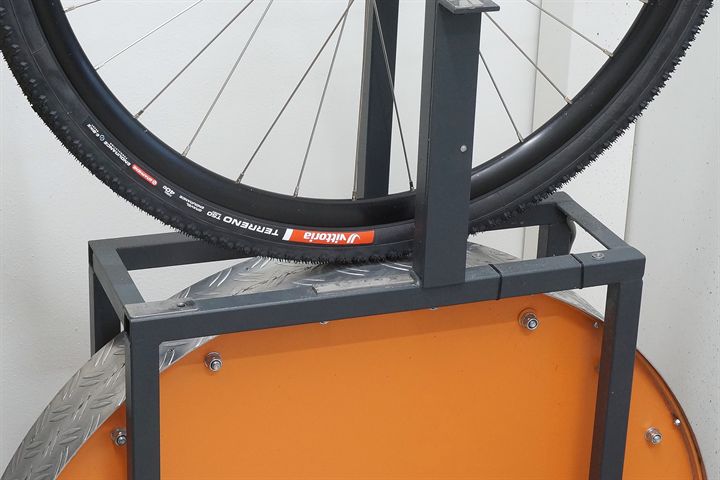

Rolling Resistance Test Results

Rolling Resistance Test Results
Inner Tube	None (30 ml sealant)
Measured Width	38 mm
Rolling Resistance Real tire width in mm: 30-32 = 66 psi/4.6 bar 33-35 = 60 psi/4.1 bar 36-38 = 54 psi/3.7 bar 39-42 = 50 psi/3.4 bar 43-46 = 46 psi/3.2 bar 47-50 = 42 psi/2.9 barHigh Air Pressure (54 psi / 3.7 bar)	Pro Data
Rolling Resistance Real tire width in mm: 30-32 = 55 psi/3.8 bar 33-35 = 50 psi/3.4 bar 36-38 = 45 psi/3.1 bar 39-42 = 42 psi/2.9 bar 43-46 = 38 psi/2.6 bar 47-50 = 35 psi/2.4 barMedium Air Pressure (45 psi / 3.1 bar)	Pro Data
Rolling Resistance Real tire width in mm: 30-32 = 44 psi/3.0 bar 33-35 = 40 psi/2.8 bar 36-38 = 36 psi/2.6 bar 39-42 = 33 psi/2.3 bar 43-46 = 31 psi/2.1 bar 47-50 = 28 psi/1.9 barLow Air Pressure (36 psi / 2.6 bar)	28.0 Watts CRR: 0.00839
Rolling Resistance Real tire width in mm: 30-32 = 33 psi/2.3 bar 33-35 = 30 psi/2.1 bar 36-38 = 27 psi/1.9 bar 39-42 = 25 psi/1.7 bar 43-46 = 23 psi/1.6 bar 47-50 = 21 psi/1.4 barExtra Low Air Pressure (27 psi / 1.9 bar)	Pro Data
The CX/Gravel section is a multi tire size section, air pressures have been adjusted to the measured casing width. All numbers are for a single tire at a speed of 29 km/h / 18 mph and a load of 42.5 kg / 94 lbs. Use the formula: RR (Watts) = CRR * speed (m/s) * load (N) to calculate rolling resistance at a given speed and load.

Puncture Resistance Test Results

Puncture Resistance Test Results (higher is better)
Total Puncture Score Tread	44 Points
Total Puncture Score Sidewall	Pro Data
Tread Puncture Force Sharp Needle	Pro Data
Tread Puncture Force Blunt Needle	Pro Data
Tread Total Tire Thickness	2.60 mm
Sidewall Puncture Force Sharp Needle	Pro Data
Sidewall Puncture Force Blunt Needle	Pro Data
Sidewall Total Tire Thickness	Pro Data

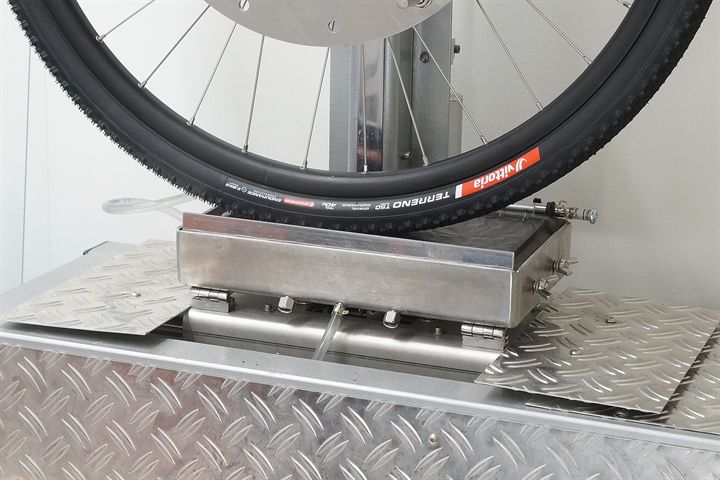

Hard Surface Static Grip Test Results

Static Grip Test Results
Wet Grip Average	68 Points
Wet Grip Center	Pro Data
Wet Grip Edge	Pro Data
Measured Knob Height Center	1.2 mm
Measured Knob Height Edge	3.0 mm
Grip in points = coefficient of friction * 100 CX/Gravel grip test rim width = 23.0 mm
Wet Grip Test and Off-Road Tires (info)

Conclusion

Our test results show that the Vittoria Terreno T50 Mixed Gravel Endurance is primarily an endurance tire. We see strong overall performance in most of our tests, but the T50's significant weakness is in the rolling resistance tests, where it rolls much slower than the top-performing gravel bike tires. While we test other aspects of tires these days, we still find rolling resistance to be one of the most important aspects of a gravel bike tire.

Vittoria describes the T50 as a "one-tire-fits-all" solution, and we see that as its strongest point. With the additional E-Bike Ready rating, this might be a good option for those who don't need low rolling resistance tires.

For most of us, rolling resistance is still very important, so let's hope for a faster "Light" edition that does away with the E-Bike Ready rating.

RATING: 3.0 / 5
TEST VERDICT: Recommended
